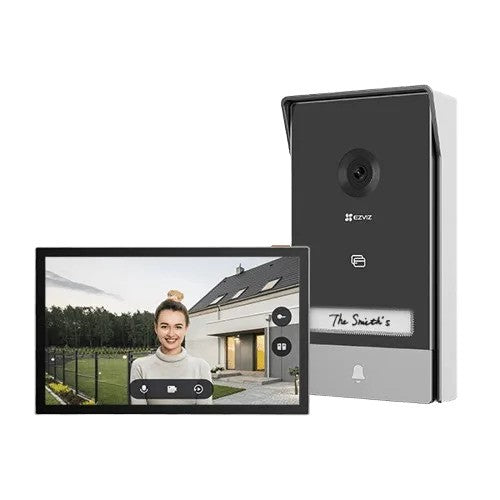

Brand: EZVIZ by Hikvision
-
Colour: Black
-
Type: Smart 2K⁺ Video Doorphone
-
Resolution: 2K⁺ (2MP Outdoor Camera, 162° Wide Angle)
-
Display: 7-Inch Color Touch Screen
-
Connectivity: Dual-Band Wi-Fi (2.4 / 5 GHz)
-
Unlock Methods: RFID Tags, EZVIZ App, Indoor Display
-
Audio: Two-Way Video Intercom with Clear Sound
-
Storage: MicroSD up to 512 GB + EZVIZ Cloud Storage
-
Warranty: 2-Year Official EZVIZ Warranty
Specifications |
|
|
Model |
CS-HP7-R105-1W2TFC |
|
Outdoor Doorbell |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|
Lens |
2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
|
Day & Night |
IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
|
Max. Resolution |
2048 × 1296 |
|
DNR |
2D / 3D DNR |
|
Video Compression |
H.265 / H.264 |
|
Frame Rate |
Max: 15fps; Self-Adaptive during network transmission |
|
Connection and Function |
|
|
Connection Method |
Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
|

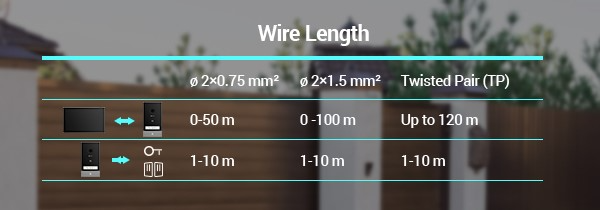

Transmission Distance |
Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
|
Open the door (Gate) |
Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
|
Unlock (Electric strike plate) |
Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
|
Door Open Methods |
1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock |
|
Outdoor Doorbell Interface |
|
|
Audio Input |
Built-in high-sensitivity microphone |
|
Audio Output |
Built-in high-power speaker |
|
Doorbell Button |
Yes. The light can be set on or off. |
|
Name Card |
Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off. |
|
Terminal |
Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
|
Functions |
|
|
Intelligent Alarm |
Smart human motion detection, Lingering Detection |
|
Tamper Alarm |
Supports |
|
Video Intercom |
Long-distance video two-way talk |
|
General |
|
|
Operation Conditions |
-30°C to 60°C , Humidity 95% or less (non-condensing) |
|
IP Grade |
Waterproof, with shield cover |
|
Size |
161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch) |
|
Interior Display |
|
|
Display size |
7” touch screen |
|
Resolution |
1024 × 600 |
|
Interface |
|
|
Audio Input |
Built-in high-sensitivity microphone |
|
Audio Output |
Built-in high-power speaker |
|
Button |
Screen On / Off Button |
|
Terminal |
Two wiring ports to connect 1st outdoor doorbell. |
|
Storage |
Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
|
Network Parameters |
|
|
Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Interface Protocol |
EZVIZ Coud Proprietary Protocol |
|
Protocol |
EZVIZ Connect Protocol |
|
Wi-Fi Parameters |
|
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11ac |
|
Frequency Range |
2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
|
Channel Bandwidth |
Supports 20MHz |
|
Security |
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
|
Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
|
Function |
|
|
Multiple ringtones |
Up to 20 ringtones |
|
Functions |
Live view, playback, two-way talk, video call |
|
General |
|
|
Operation Conditions |
-10°C to 45°C, humidity 95% or less (non-condensing) |
|
Weight |
Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz) |
|
Size |
180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
|
Power Supply |
DC 24V / 1A power supply, adaptor (100- 240Vac) |
|
Power Consumption |
8W, Max. 24W |
|

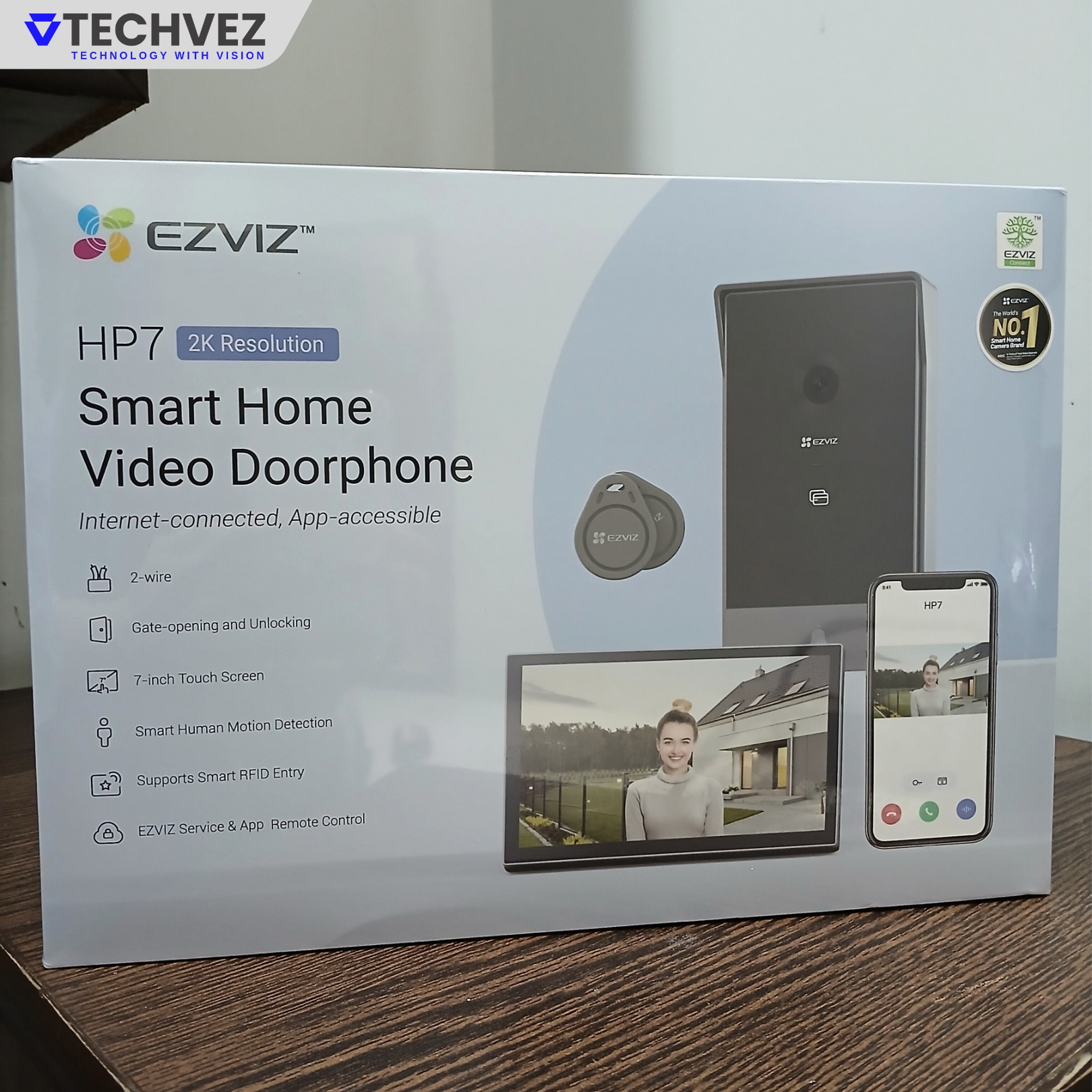

In the box |
|
|
In the box |
- Monitor |
|
- Wall Bracket for Monitor |
|
|
- Power Adapter for Monitor |
|
|
- Drill Template for Monitor |
|
|
- Intercom Panel |
|
|
- Drill Template for Intercom Panel |
|
|
- Screwdriver |
|
|
- Badges (×3) |
|
|
- Screw Kit (×2) |
|
|
- Name Card (×2) |
|
|
- Wires and Wire Connectors |
|
|
- DC 24V Power Supply Jack Connector Cable |
|
|
- Regulatory Information (×2) |
|
|
- Quick Start Guide |
|
|
Certifications |
|
|
Certifications |
CE / REACH / WEEE / RoHS |
