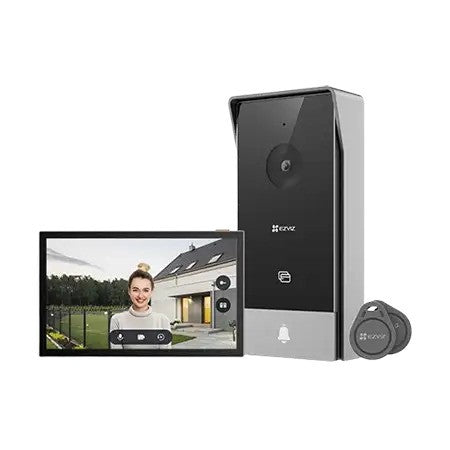

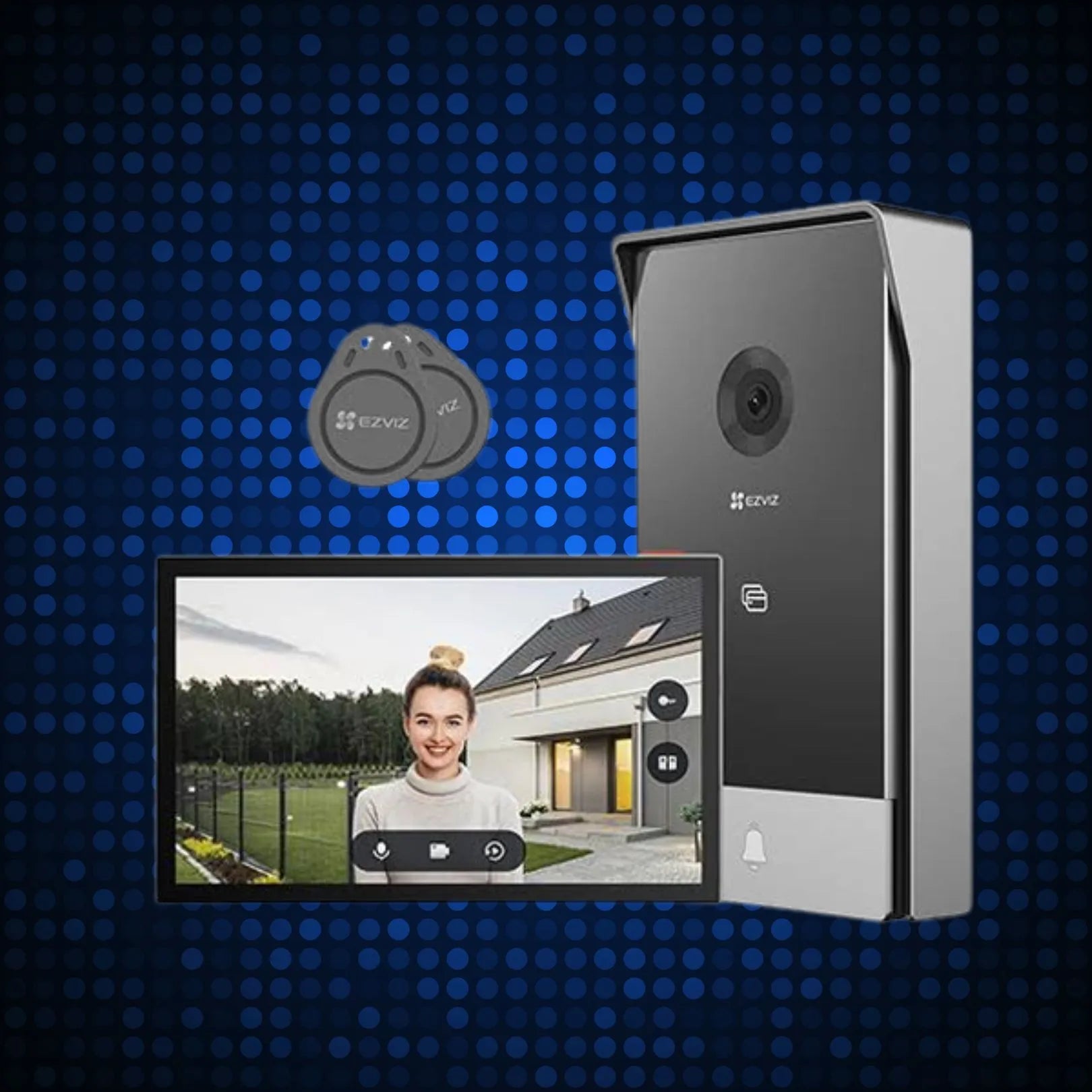

HP5 Smart Video Doorphone gives you a complete front door communication and monitoring system with clear video, smart alerts, and reliable remote access. The device offers 1080p video for sharp viewing and works well for homes, shops, offices, and apartments. The built in 7 inch color touch screen allows easy interaction inside the property, while the camera panel outside handles visitor communication.
Main Features of the HP5 Smart Video Doorphone
The HP5 captures 1080p video to give you clear visuals of visitors. The camera supports person detection, so you receive alerts only when someone approaches the door. This reduces unnecessary notifications and helps you focus on real activity. The built in doorbell offers multiple ringtone choices, giving you flexibility in how you want alerts to sound indoors.
Two way talk is included, along with a voice changer. This feature adds privacy by altering your voice when responding to unknown visitors. The HP5 lets you unlock your door remotely through the EZVIZ App. You can also use RFID tags for quick access without entering a code.
The system supports MicroSD cards up to 512 GB for local video storage. EZVIZ CloudPlay is also available as an optional cloud backup. This gives you multiple ways to store recordings. Dual band WiFi 6 provides stable connectivity on both 2.4 GHz and 5 GHz networks.
Why the HP5 Smart Video Doorphone Is a Strong Entry Solution
The HP5 is designed for users who want a professional door communication system without the complexity of traditional intercom installations. The touch screen makes it easy to see visitors and respond. You can view live video, check alerts, and unlock the door instantly. The layout is simple for daily use and requires minimal training for family members or staff.

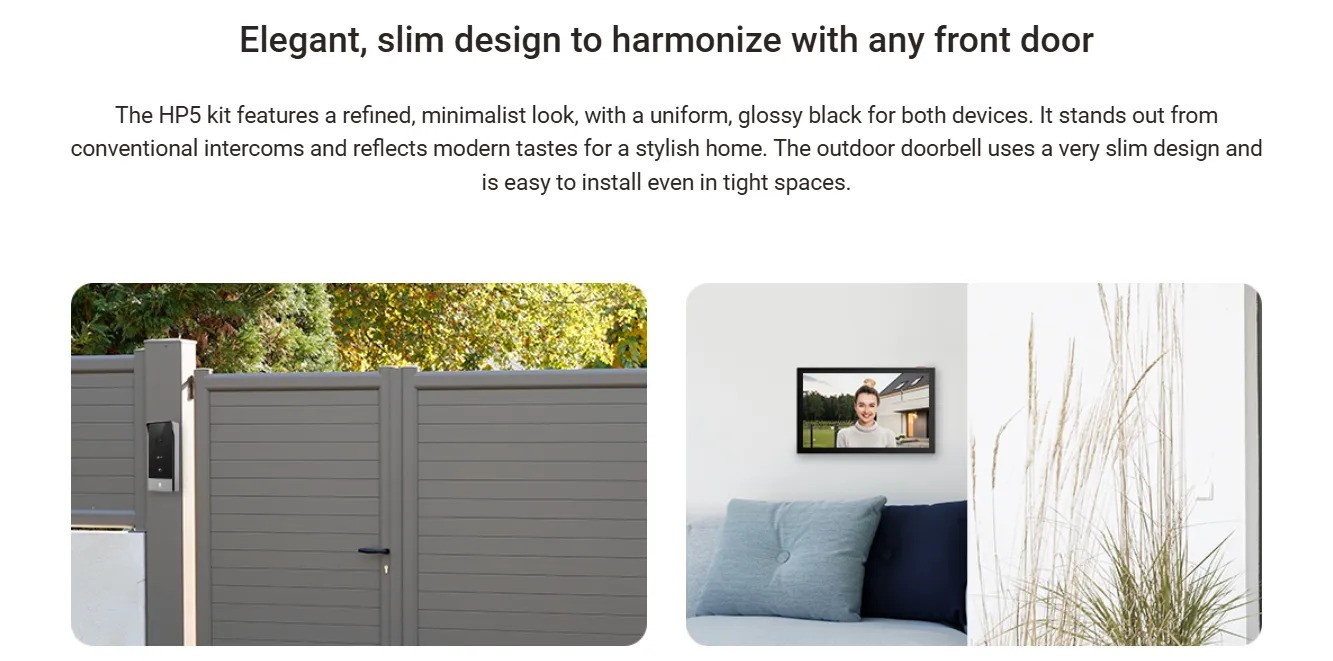

The weatherproof camera panel works reliably outdoors. It is built to withstand dust, rain, and temperature variations. The slim design looks modern and blends well with entrance areas. The indoor screen is slim and can be mounted easily at eye level.
With the EZVIZ App, you can manage the HP5 from anywhere. You can review footage, operate the lock, and manage alerts. The combination of touch screen control and app control provides flexibility. RFID unlocking is useful for children and elderly users who prefer simple access.
The HP5 Smart Video Doorphone is a complete doorstep monitoring solution with strong connectivity, clear video, smart detection, and easy access management. Every unit includes a 2 year official EZVIZ warranty.
Specifications
| Model |
CS-HP5-R100-1W2TFC |
| Outdoor Doorbell |
| Image Sensor |
1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens |

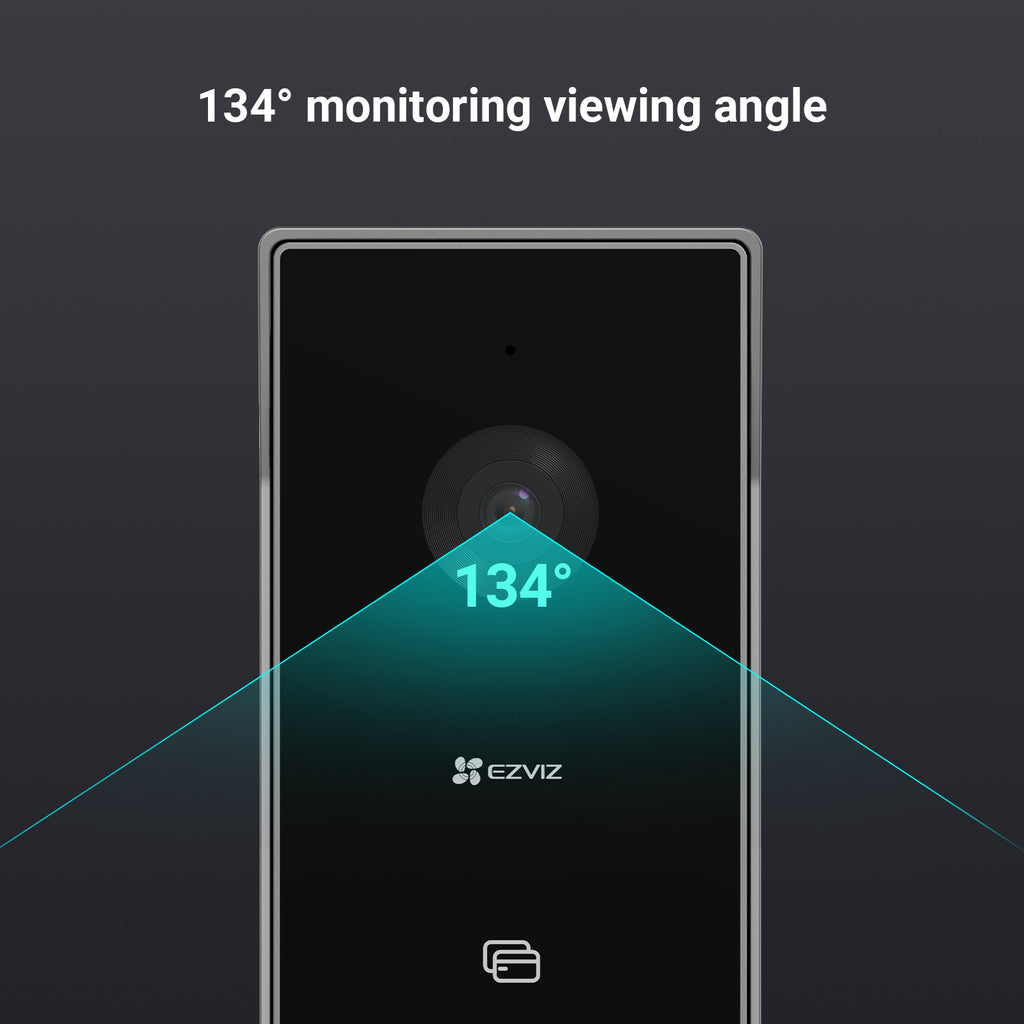

2.0 mm @ F1.6,viewing angle: 134° (Diagonal) |
| Day & Night |
IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution |
1920 × 1080 (1080p) |
| DNR |
2D / 3D DNR |
| Video Compression |
H.265 / H.264 |
| Frame Rate |
Max: 15fps; Self-Adaptive during network transmission |
| Connection and Function |
| Connection Method |

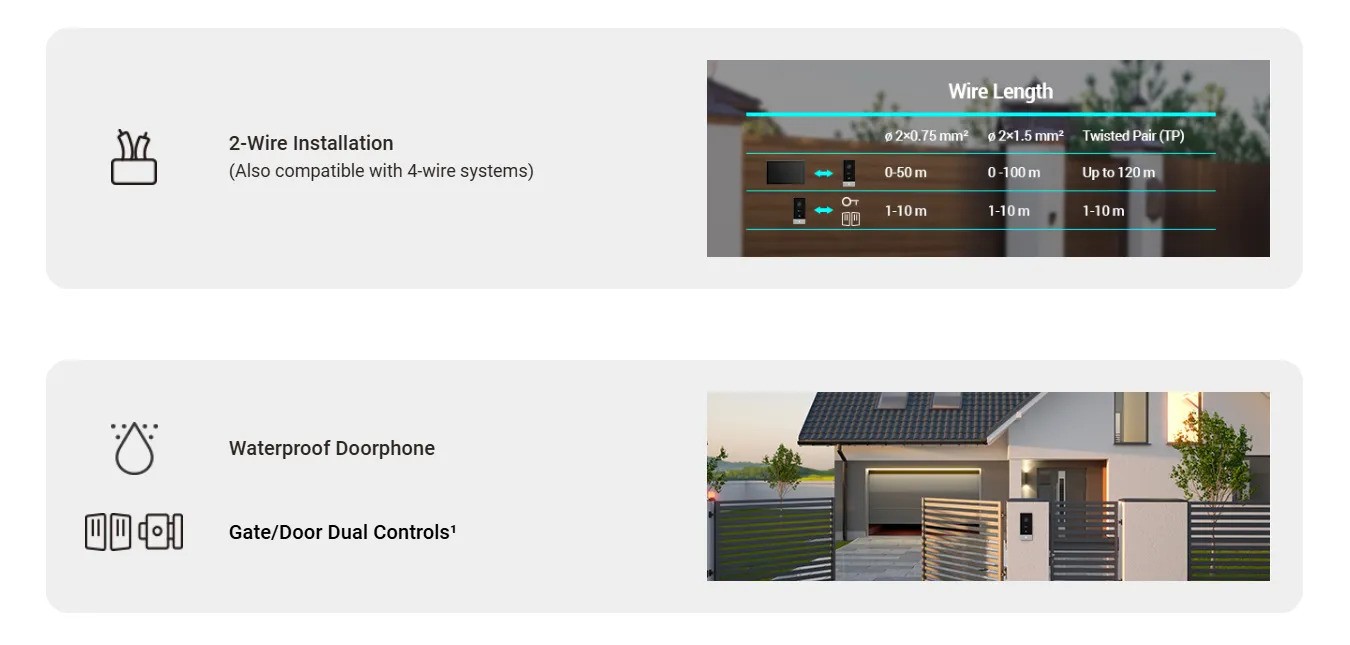

Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
| Transmission Distance |
Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
| Open the door (Gate) |

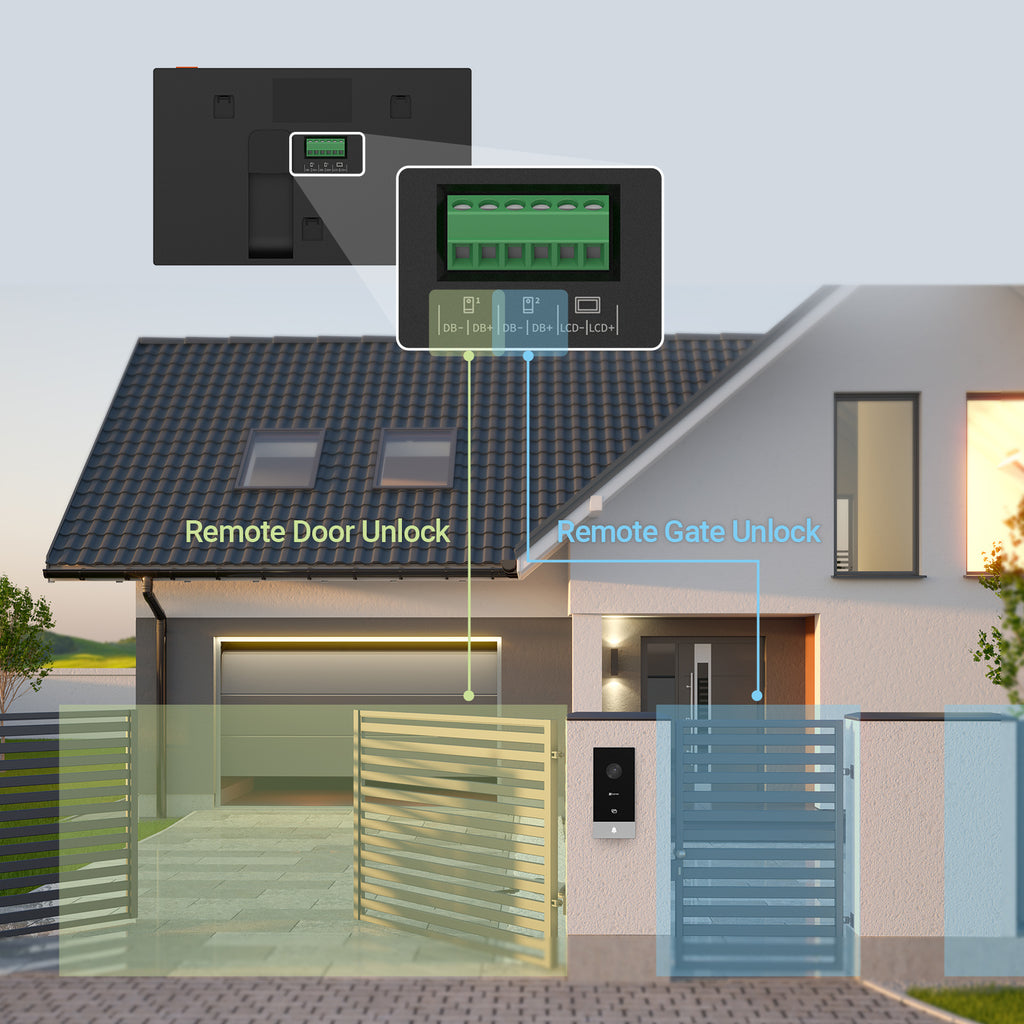

Support 2 wiring ports. 1-10m distance. The intercom panel provides a "dry"-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) |
Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods |
1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock |
| Outdoor Doorbell Interface |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Doorbell Button |
1 doorbell button (Can be set to become illuminated or not). |
| Terminal |
Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Functions |
| Tamper Alarm |
Supports |
| Video Intercom |
Long-distance video two-way talk |
| General |
| Operation Conditions |
-30°C to 60°C , Humidity 95% or less (non-condensing) |
| IP Grade |
Waterproof, with shield cover |

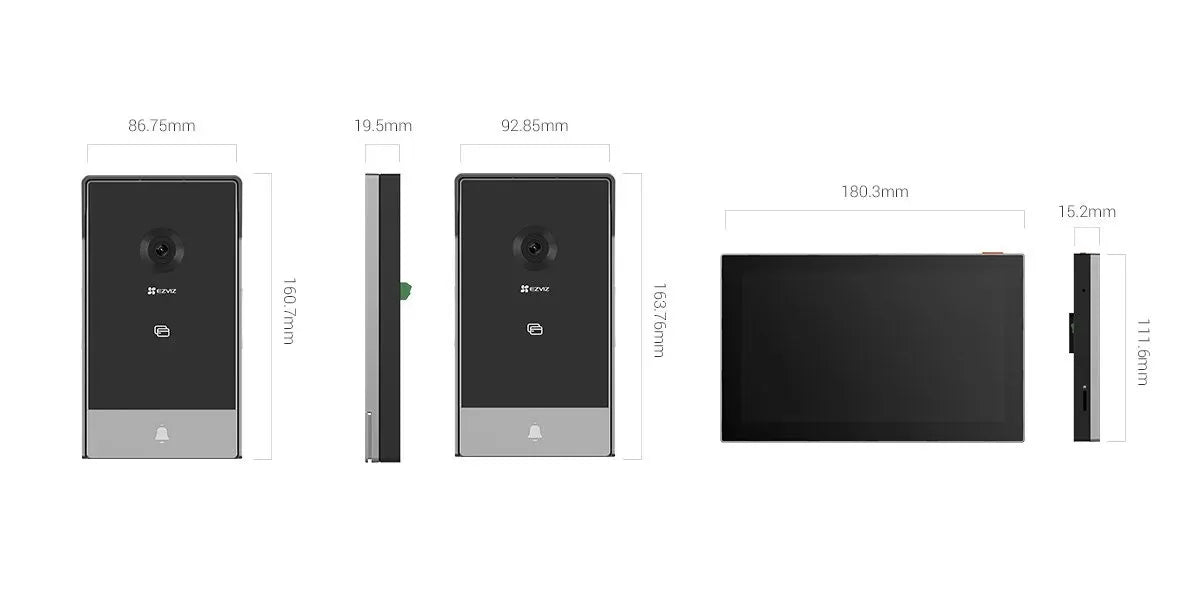

| Size |
153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch) |
| Interior Display |
| Display size |
7” touch screen |
| Resolution |
1024 × 600 |
| Interface |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Button |
Screen On / Off Button |
| Terminal |
Two wiring ports to connect 1st outdoor doorbell. |
| Storage |
Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
| Network Parameters |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Protocol |
EZVIZ Connect Protocol |
| Wi-Fi Parameters |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range |
2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Function |
| Multiple ringtones |
Up to 20 ringtones |
| Functions |
Live view, playback, two-way talk, video call |
| General |
| Operation Conditions |
-10°C to 45°C, humidity 95% or less (non-condensing) |
| Size |
180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply |
DC 24V 1.5A power supply, adaptor (100-240Vac) |
| Power Consumption |
8W, Max. 24W |
| Products Weight (HP5) |
| Net Weight |
639g (22.54oz) |
| With Package |
1505g (53.09 oz) |
| In the box |
| In the box |
- Monitor |
| - Wall Bracket for Monitor |
| - Power Adapter for Monitor |
| - Intercom Panel |
| - Drill Template for Monitor |
| - Drill Template for Intercom Panel |
| - Name Card (×2) |
| - Screwdriver |
| - Badges (×2) |
| - Screw Kit (×2) |
| - Wires and Wire Connectors |
| - DC 24V Power Supply Jack Connector Cable |
| - Regulatory Information (×2) |
| - Quick Start Guide |
| Certifications |
| Certifications |
CE / REACH / WEEE / RoHS |
