EZVIZ H9C Dual 3K (5MP + 5MP) Outdoor WiFi Camera
EZVIZ H9C Dual 3K (5MP + 5MP) Outdoor WiFi Camera
Couldn't load pickup availability
Overview of EZVIZ H9C Dual 3K (5MP + 5MP) Outdoor WiFi Camera
The EZVIZ H9C Dual 3K is an outdoor WiFi camera that gives you full area coverage with two synchronized 3K (5MP) lenses. It is designed to cover large outdoor areas with a clear panoramic view supported by smooth pan-tilt control. The camera identifies humans and vehicles with AI-powered detection, and co-detection between both lenses keeps subjects in view as they move from one lens's field of view into the other.
Looking for the standard resolution? This is the higher-resolution Dual 3K (5MP + 5MP) version. If you'd prefer the standard resolution at a lower price, see the EZVIZ H9C Dual Lens 3MP + 3MP Camera.
The H9C Dual 3K captures bright, detailed footage even at night with color night vision from 4 built-in spotlights, and two way talk lets you communicate in real time. It supports MicroSD storage up to 512 GB and uses H.265 compression to save space, works with the EZVIZ app for live view, playback, and alerts, and offers strong dual-antenna WiFi performance with a weather-resistant outdoor design backed by a 2-year official warranty. It also works with Google Assistant and Amazon Alexa.
Main Features
- Dual 3K (5MP + 5MP) synchronized lenses for full area coverage
- Co-detection for interlinked auto-tracking between both lenses
- 360° panoramic coverage with a motorized pan-tilt lens
- AI-powered human and vehicle shape detection on both lenses
- Color night vision with 4 built-in spotlights
- Active defense with siren and strobe light
- Two way talk
- Enhanced dual WiFi antennas for stronger signal
- MicroSD storage up to 512 GB, plus EZVIZ CloudPlay storage, with H.265 compression
- Weather-resistant outdoor design
- Works with Google Assistant and Amazon Alexa
- 2 year official EZVIZ warranty
Why Choose the EZVIZ H9C Dual 3K Camera
The H9C Dual 3K is well suited for monitoring homes, shops, offices, schools, and larger outdoor spaces where you need more than one viewpoint. Its 360° view covers blind spots for a complete field of vision, the AI detection identifies humans and vehicles with better accuracy than basic motion alerts, and the adjustable pan-tilt control makes it easy to track movement across a wide area. The 5MP + 5MP resolution on both lenses gives you sharper detail than the 3MP + 3MP version, which is useful when you need to zoom in on faces, vehicles, or number plates after an incident.
Specifications
| Model | CS-H9c-R100-8G55WKFL |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Fixed Wide-Angle Lens: 2.8mm @ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, Vertical 58°. Pan & Tilt Lens: 6mm @ F1.6, viewing angle: Diagonal 64°, Horizontal 56°, Vertical 29° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Night Vision Range | 30m black & white; up to 40m color (lenses facing the same direction); up to 30m color (lenses facing opposite directions) |
| Video & Audio | |
| Max Resolution | 2880 × 1620 per lens (3K) |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n (2.4 GHz), dual antennas |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Security | WPA-PSK/WPA2-PSK, AES-128 encryption, TLS transmission |
| Functions | |
| Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
| Co-Detection | Interlinked auto-tracking between both lenses |
| Two-way Talk | Supports |
| Active Defense | Siren and strobe light, automatic or manual |
| Smart Home | Works with Google Assistant and Amazon Alexa |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | MAX. 12W |

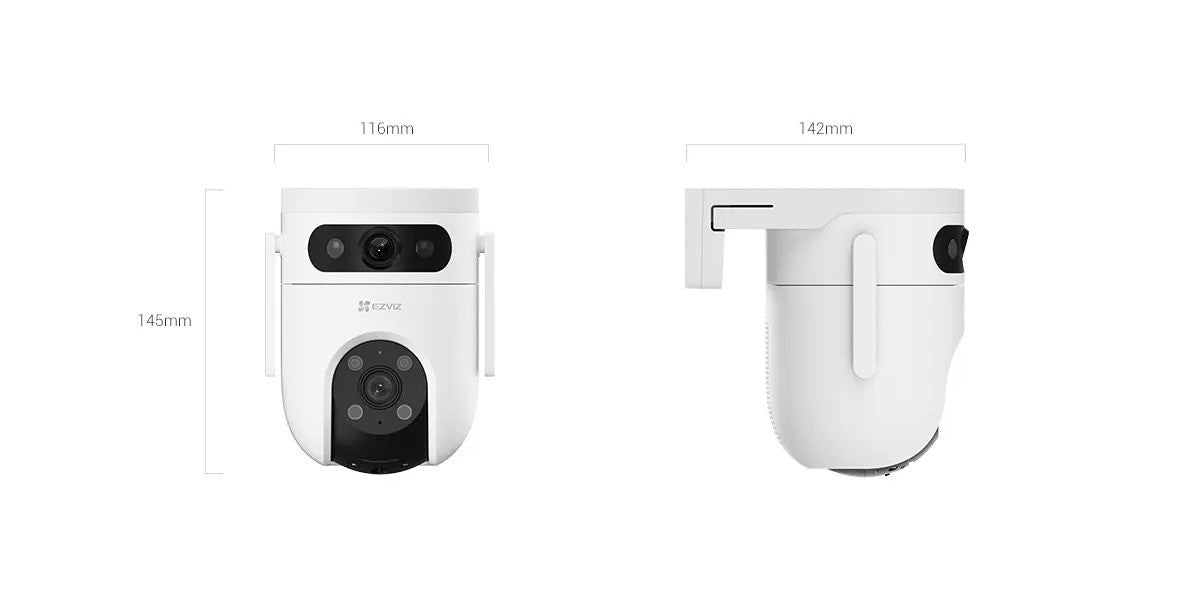

| Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
| Weight | Net Weight: 668 g; With Package: 960 g |
In the Box
- H9c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications: CE / UKCA / WEEE / RoHS / REACH
Warranty and Customer Support
The EZVIZ H9C Dual 3K (5MP + 5MP) Outdoor WiFi Camera comes with a 2 Year Official EZVIZ Warranty. For official support, setup help, and firmware updates, visit https://www.ezviz.com. You can also explore other EZVIZ dual lens security cameras available at TECHVEZ.
