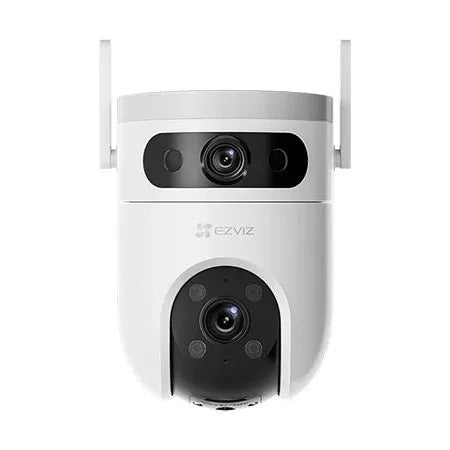

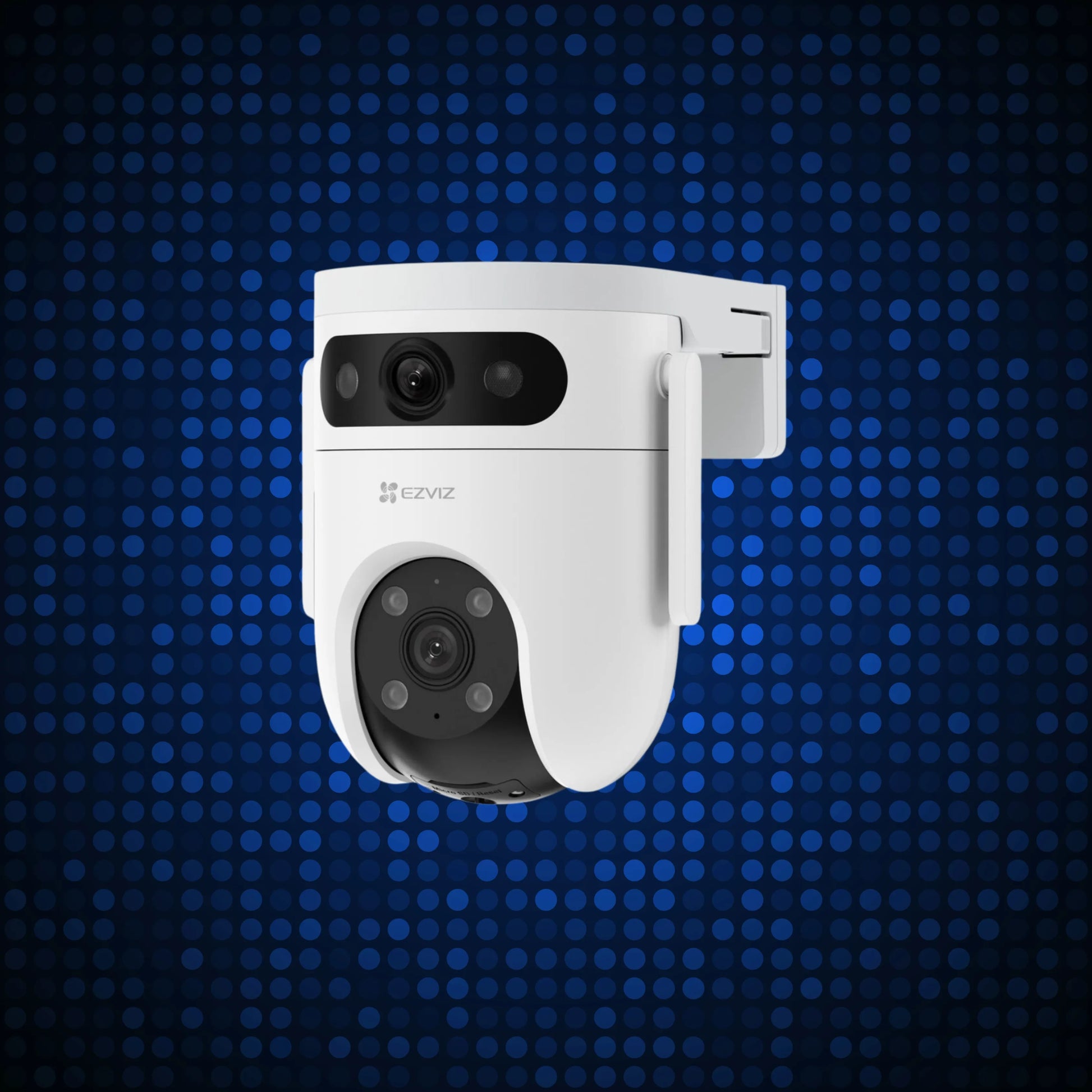

EZVIZ H9C Dual Lens 3MP + 3MP Outdoor Wifi Camera
EZVIZ H9C Dual Lens 3MP + 3MP Outdoor Wifi Camera
Couldn't load pickup availability
Overview of EZVIZ H9C Dual Lens 3MP + 3MP Outdoor WiFi Camera
The EZVIZ H9C Dual Lens 3MP + 3MP is an outdoor WiFi camera that gives you full area coverage with two synchronized lenses. It is designed to cover large outdoor areas with a clear panoramic view supported by smooth pan-tilt control. The camera identifies humans and vehicles with AI-powered detection, and auto tracking keeps subjects in view.
The H9C captures bright and clear footage even at night with color night vision, and two way talk lets you communicate in real time. It supports MicroSD storage up to 512 GB and uses H.265 compression to save space, works with the EZVIZ app for live view, playback, and alerts, and offers strong WiFi performance with a weather-resistant outdoor design backed by a 2-year official warranty.
Main Features
- Dual 3MP synchronized lenses for full area coverage
- 360° view with smooth pan and tilt control
- AI-powered human and vehicle detection
- Smart auto tracking
- Color night vision for clear low-light footage
- Two way talk
- MicroSD storage up to 512 GB, with H.265 compression
- Weather-resistant outdoor design
- 2 year official EZVIZ warranty
Why Choose the EZVIZ H9C Dual Lens Camera
The H9C is well suited for monitoring homes, shops, offices, schools, and outdoor spaces. Its 360° view covers blind spots for a complete field of vision, the AI detection identifies humans and vehicles with better accuracy than basic motion alerts, and the adjustable pan tilt control makes it easy to track movement across a wide area.
Specifications
| Model | CS-H9c-R100-8H33WKFL |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 2304 × 1296 |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Security | WPA-PSK/WPA2-PSK |
| Functions | |
| Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | MAX. 12W |
| Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net Weight: 668 g; With Package: 960 g |
In the Box
- H9c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications: CE / WEEE / RoHS / REACH
Warranty and Customer Support
The EZVIZ H9C Dual Lens 3MP + 3MP Outdoor WiFi Camera comes with a 2 Year Official EZVIZ Warranty. For official support, setup help, and firmware updates, visit https://www.ezviz.com. You can also explore other EZVIZ dual lens security cameras available at TECHVEZ.
